Gen-2 EEG Headband

Posted on by Nicholas Gabriel
Sale!

Original price was: $799.99.Current price is: $759.99.

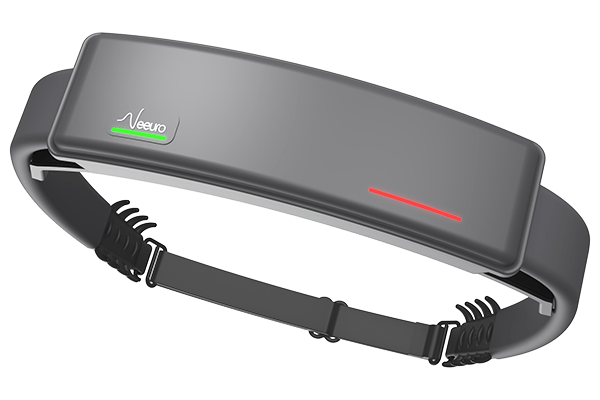

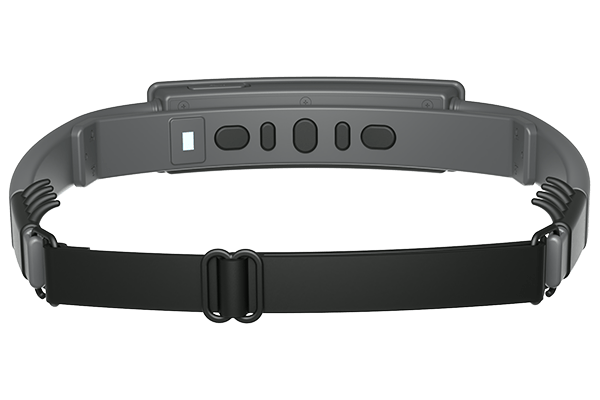

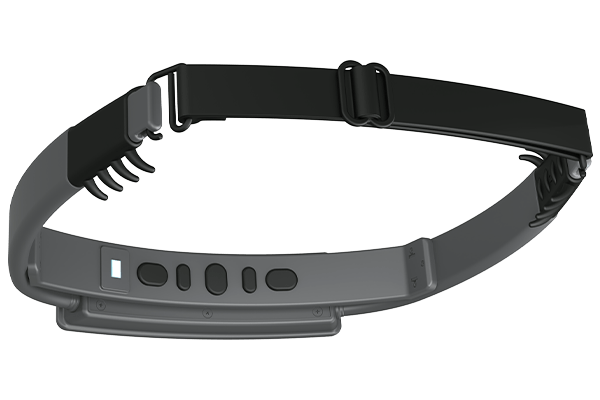

A non-invasive EEG headband that safely measures brain signals. The headband comes with 6 sensors – 4 individual channels and 2 reference sensors. The electrodes are made from a unique formulation that is very conductive, making it sensitive to picking up EEG signals. It maximizes the potential of the headband to be accurate in the interpretation of EEG signals.

  • Energize, motivate and be in control of your brain
  • Accompanied with a proprietary app, the headband will allow you to monitor the different mental states in which your mind is in. Understand what makes you tick, what soothes your mind, or discover what kind of environment helps you become even more productive.
  • With the user wearing the headband, low frequency signals on the forehead are picked up by four individual sensors, giving us four individual channels of brain signals.
  • Bluetooth Syncing: Synchronize wirelessly with leading smartphones and tablets using Bluetooth 4.0 BLE.
SKU: 2001 Category: Tags: , , , , ,

Description

How Does EEG Headband Work?

With the user wearing the EEG headband, low frequency signals on the forehead are picked up by four individual sensors, giving four individual channels of brain signals. The brain signals are within the ranges of 0.5 to 100 Hz with amplitudes in the region of microvolts.

EEG Frequency Bands

  • Delta (0.5 to 4 Hz)
  • Theta (4 to 8 Hz)
  • Alpha (8 to 13 Hz)
  • Beta (13 to 30 Hz)
  • Gamma > 30 Hz

The level of these frequencies reveal a user’s brain states. The headband measures the user’s mental state in real-time. This enables a closed-loop system for use with a proprietary mobile applications which we specially acquire, which we use to measure and evaluate certain users’ cognitive functions. At the same time, the application enables users to engage in the games, like controlling certain features with their minds.

  • EEG Sensors: Proprietary elastomer sensors: 4 channels and 2 references at 250 samples per second per channel with a resolution of 0.6 uV.
  • Accelerometer: Monitors for any head movements that can be used to detect motion.
  • Compatibility: Compatible with leading iOS and Android smartphones and tablets.
  • Mental Performance: Capable of measuring and tracking your attention, focus, mental workload and relaxation levels.
  • Bluetooth Syncing: Synchronize wirelessly with leading smartphones and tablets using Bluetooth 4.0 BLE.
  • Battery: Internal 350mAh lithium polymer battery, with up to 4 hours of continuous usage.
  • Patented Design: Stylish, yet designed with comfort in mind. Made with high quality materials to ensure the best experience.
  • Extendibility: The headband is extendable to pair with different proprietary applications or customised applications created through dedicated SDK Packages.
  • What’s Included: Micro USB charging cable, headband carrier



Additional information

Weight 0.55 kg
Dimensions 60 × 70 cm
